Engineering renderings
The hardware, up close.
Design renderings and engineering views of the Henley Ion product line — the real devices behind the technology, across both platforms. For full technical packages and CAD, get in touch.
Corona Electrostatic Precipitation · the air
Respiratory & air
Ion Mask V3 — three-quarter views
The current respirator design from three angles — muzzle, strap system, and cartridge mount.
Ion Mask V3 — assembly
Exploded assembly showing shroud, silicone muzzle, ionization cartridge, and battery bank.
Ion Mask V3 — front
Front elevation of the sealed mask with the mEP cartridge in place.

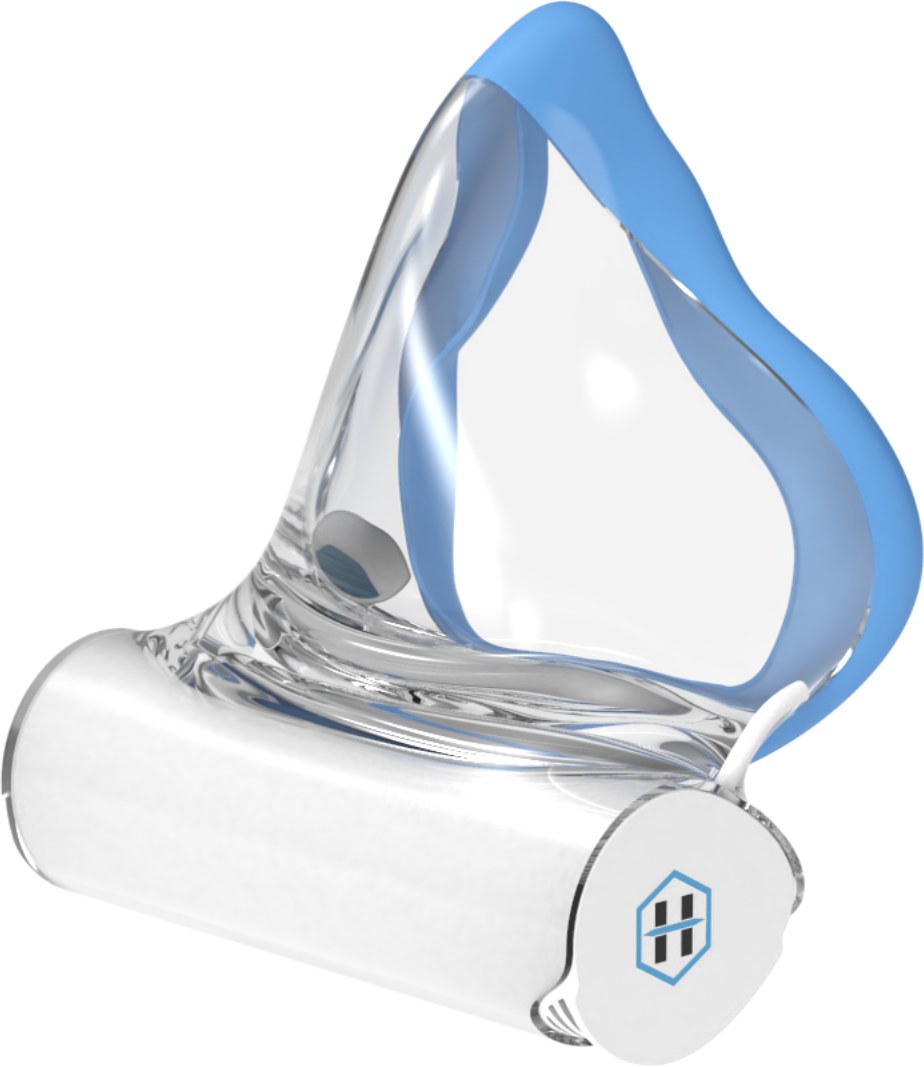

Consumer mask — front
The lighter consumer configuration for everyday respiratory protection.

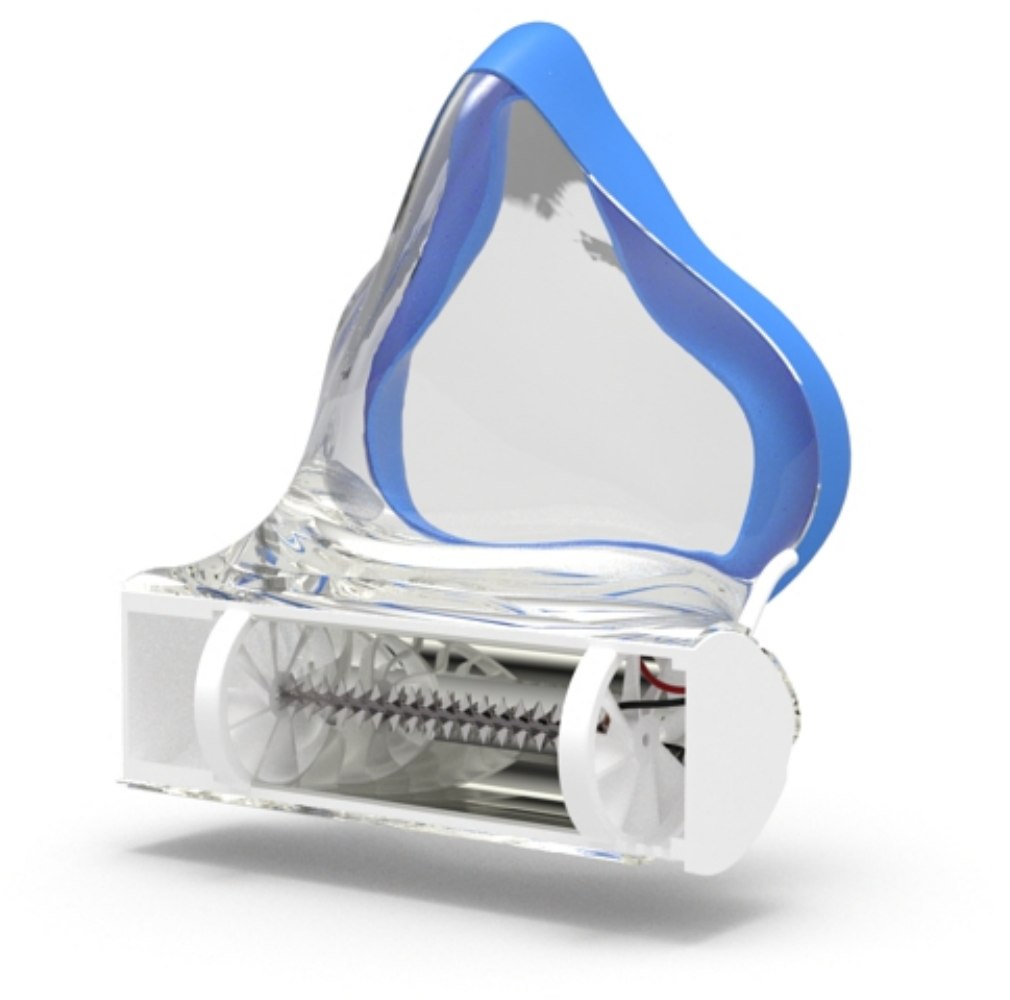

Consumer mask — cutaway
Cutaway of the airflow path through the ionization chamber to clean, breathable air.

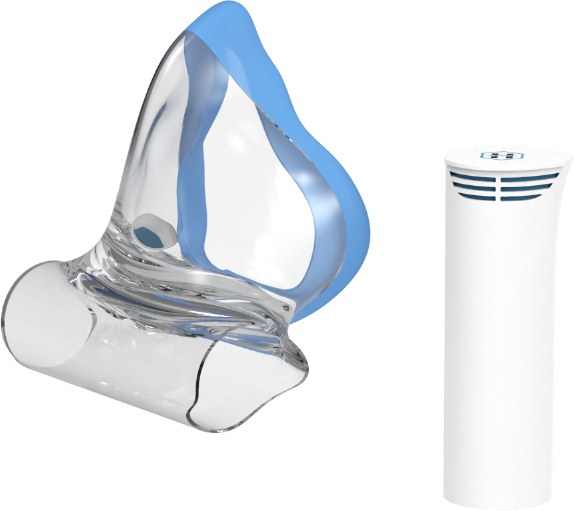

mEP ionization cartridge
The replaceable miniaturized electrostatic precipitator cartridge (≈11 cm × 4 cm).
Electrokinetic Transdermal · the body
Medicine delivery
Active Bandage — exploded
Central hub, squeeze-bulb medication port, two multichannel electrode wings, and adhesive backing.

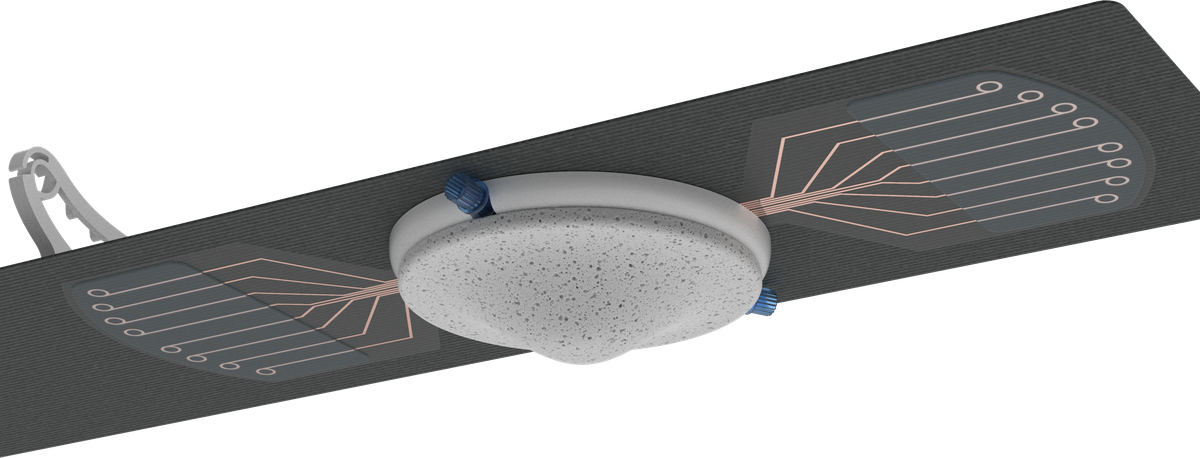

Active Bandage — underside
The conforming bladder that seals the wound while the electrode wings deliver medicine through it.

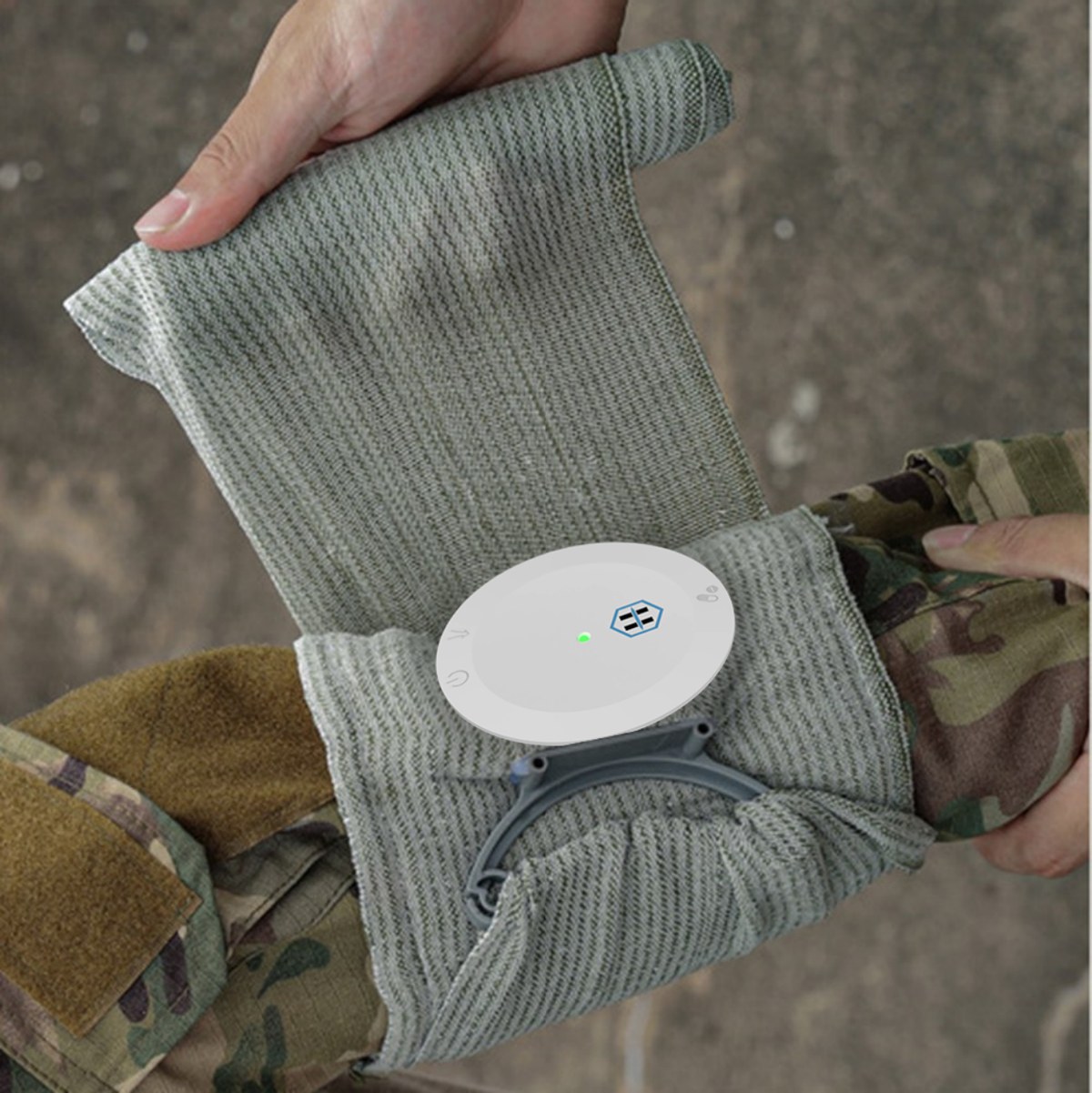

Active Bandage — in the field
Sealed over a wound and activated — infection, bleeding, and pain control at the point of injury.

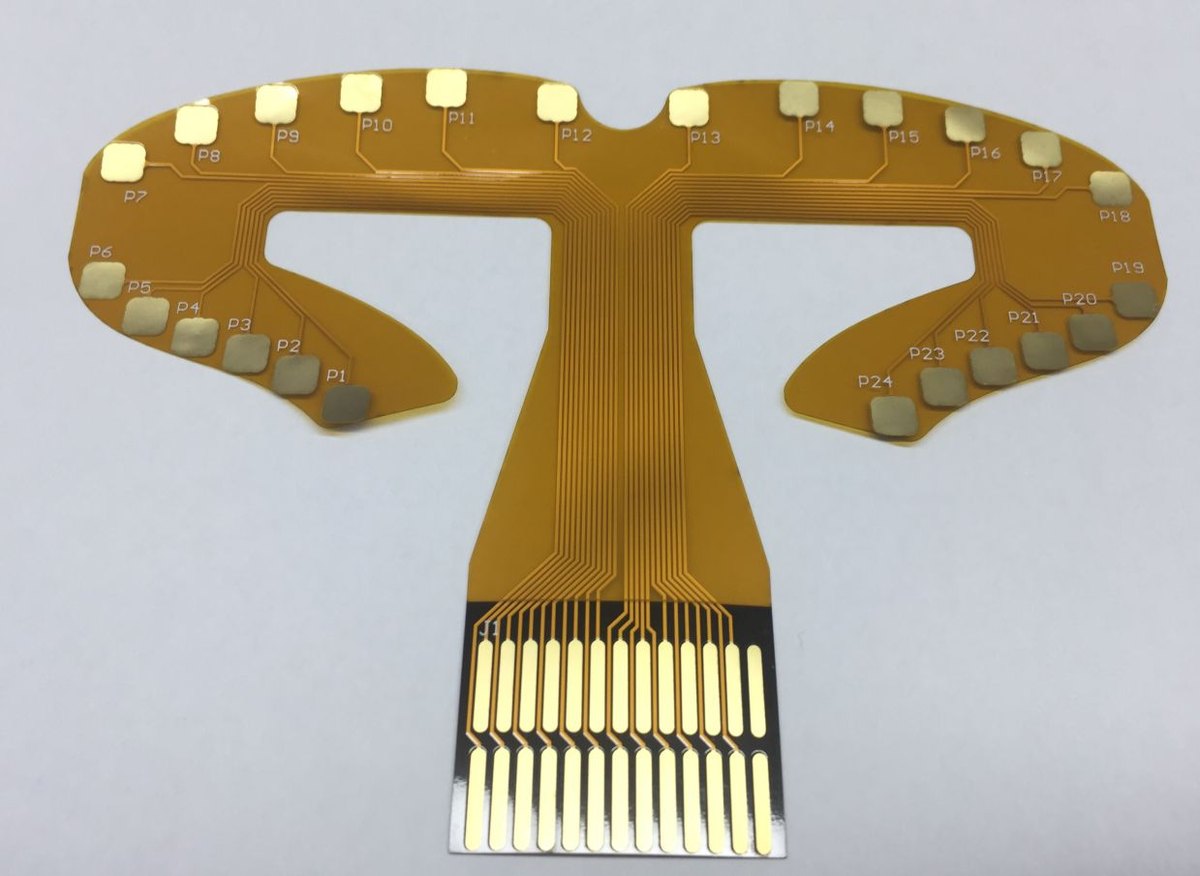

Dental electrode — 24 channels (P1–P24)
The real flexible printed electrode: 24 individually-traced channels feeding a ribbon connector — one channel per tooth position.
Dental electrode — full arch
The flexible 24-channel dental electrode that seats over the arch for needle-free anesthesia.

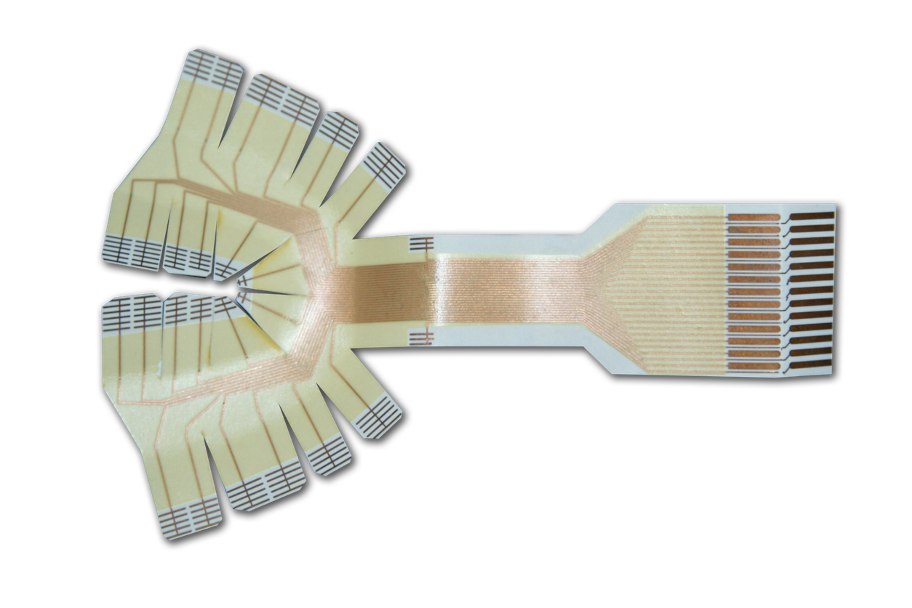

Dental electrode — channel fan
Individually-traced electrode channels fanned out — each regulated independently to avoid current tunneling.
Dental electrode — quadrant prototype
A targeted multi-contact quadrant array — an earlier electrode configuration.
Renderings are engineering and design views of prototype hardware; some configurations are in development. For an interactive look, explore the 3D “into the body” model on the home page.
